Computer Architecture with RISC-V Examples

Calendar November 27, 2019

Computer architecture basics#

Pipeline / Parallelism / Cache#

Three ultimate mechanisms to imporve performance/power

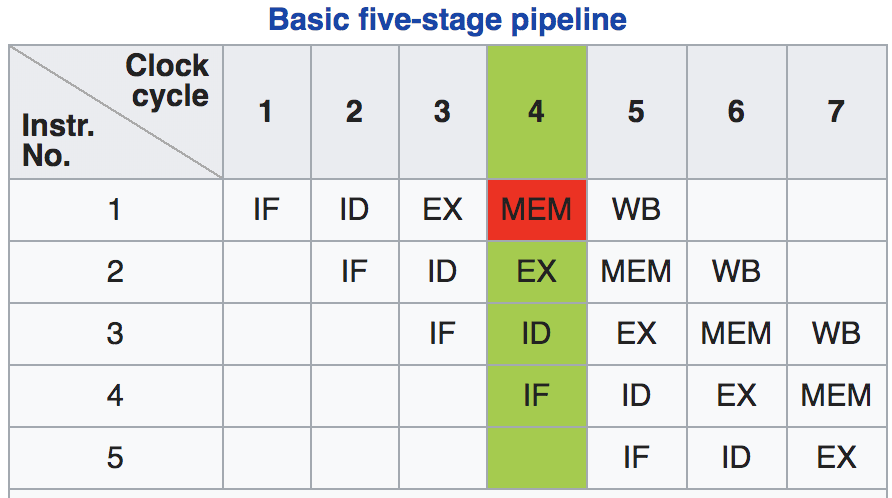

Computer architecture basics / pipeline#

pic

IF = Instruction Fetch, ID = Instruction Decode, EX = Execute, MEM = Memory access, WB = Register write back).

Computer architecture basics / pipeline#

@DEMO#

Pipeline simulator: https://github.com/mortbopet/Ripes

Computer architecture basics / pipeline#

Motivation#

  • Most of the work cannot be done at the same time.
  • To use the logic more efficiently
  • Less work per stage, higher clock frequency

Brings in problems: hazards#

  • Data hazard
    • Dependency
mv	x1, x2
add	x4, x1, x3
sd	x4, 0(x5)
  • Control hazard
    • Jump and branch
addi	x1, x1, 1
subi	x2, x1, 100
bnez	x2, 0(x3)

.co-4[

  • Structure hazard
    • Multi-cycle multiplier
mul		x1, x2, x3
mul		x4, x5, x6
mul		x7, x8, x9

Computer architecture basics / pipeline#

Other considerations#

  • Exception and interrupt
    • Flush pipeline
  • Atomic operations
  • …

Improvements#

  • Deeper pipeline
    • Higher frequence, higher power
    • Mostly for CISC machines
  • Branch prediction
    • Reduce branch penalty

Branch prediction#

  • BTB (branch target buffer)

    • Store the target PC

  • BHT (branch history table)

    • Store taken or non-taken history

  • RAS (return address stack)

    • Call stack history address

  • Flush if prediction is wrong. Waste power

Computer architecture basics / parallelism#

Parallelism#

ILP (instruction-level parallelism) & TLP (thread-level parallelism)#

  • Multi-issue
  • SMT (simultaneous multi-threading)
  • VLIW (very long instruction word)
  • SIMD (single instruction multiple data)
  • Out-of-order
  • …

Computer architecture basics / parallelism#

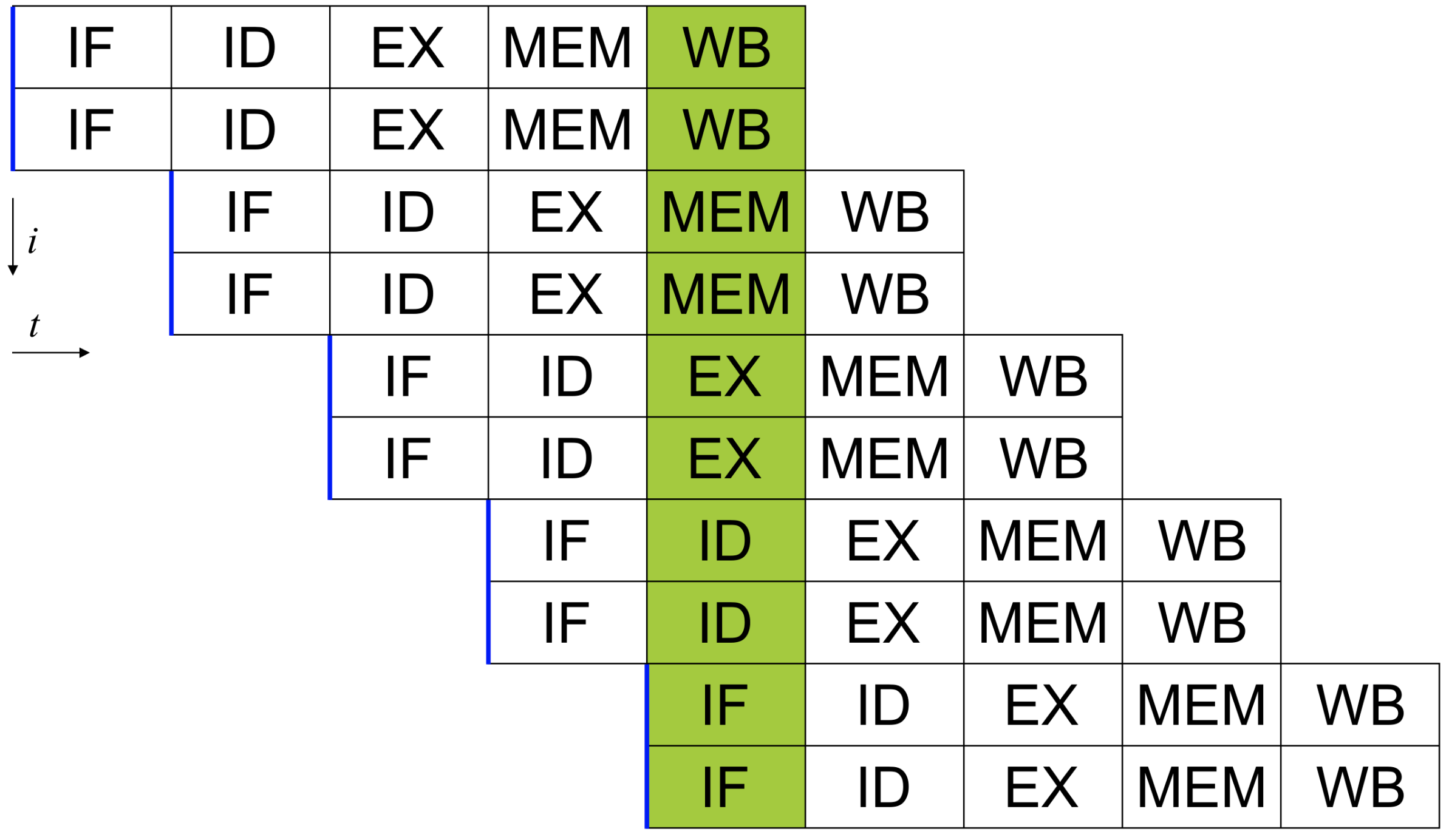

Multi-issue (a.k.a superscala)#

  • Issue multiple instructions parallelly to reuse CPU resource
    • With minimum extra control logic to reuse execution logic

pic

Computer Architecture Basics / parallelism#

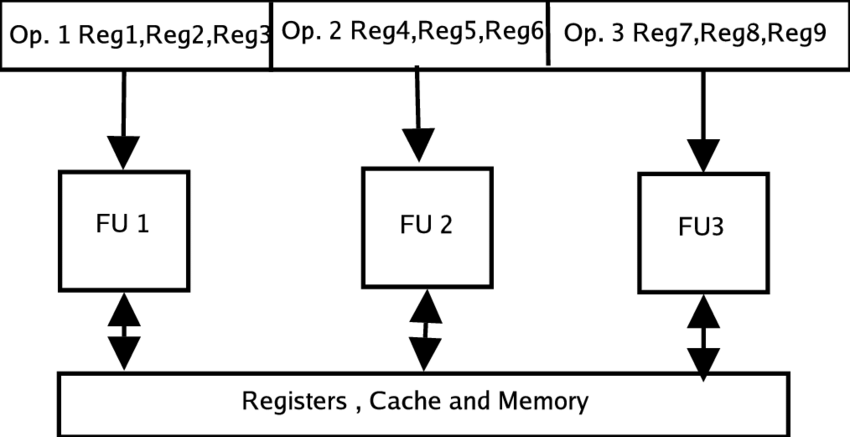

VLIW (very long instruction word)#

  • Compiler defined parallelism to reuse CPU resource
  • Pack mutiple instructions into one long instruction

pic

Computer architecture basics / parallelism#

SIMD (single instruction multiple data)#

  • Vectorization
    • Graphics & machine learning
  • Large register file becomes bottleneck

pic

Computer architecture basics / parallelism#

OOO (out-of-order)#

  • Issue instructions not following the program order to resolve dependencies
  • Register renaming, reorder buffer, etc…
  • Transparent to software

Example#

addi    x1, x1, 1
ld      x2, 0(x1)       # if cache miss, will be slow
add     x3, x3, 4
ld      x4, 0(x3)       # if cache miss, will be slow
mul     x5, x5, x6      # multi-cycle operations
  • But these slow operations don’t have dependency with each other

Computer architecture basics / parallelism#

SMT (simultaneous multi-threading)#

  • Different from temporal multi-threading (aka super-threading).
  • Different program/thread reuse CPU resource
    • Usually separated register files and CSRs, but use common execution units, cache and TLB
    • RISC-V hart (hardware thread)
  • Need compiler/OS’s help to explore thread-level parallelism

Computer architecture basics / cache#

Main memory: DRAM (dynamic random-access memory)#

  • Dynamic vs. static

    • One-bit = one capacitor + one resistor
      • The capacitor needs periodical rewrites (refresh) to keep its data. So it’s called dynamic
      • Much smaller in size; volatile (lose power lose data)

  • Parallel read/write a whole row

    • Use SRAM as buffer to speed up random access

  • Rank: another level of parallelism

    • A set of DRAM chips with the same chip select

  • SDRAM (synchronous DRAM)

    • With clock: DDR (double data rate)

  • Bandwidth

    • LPDDR4-3200 MT/s * 16-bit/channel * 2-channel = 12.8 GB/s
    • DDR5-6400 MT/s, total 64GB/s

  • The access time

    • ~100ns: too long for modern pipeline

Hierarchical cache is created to improve the latency and throughput for memory access.

Computer architecture basics / cache#

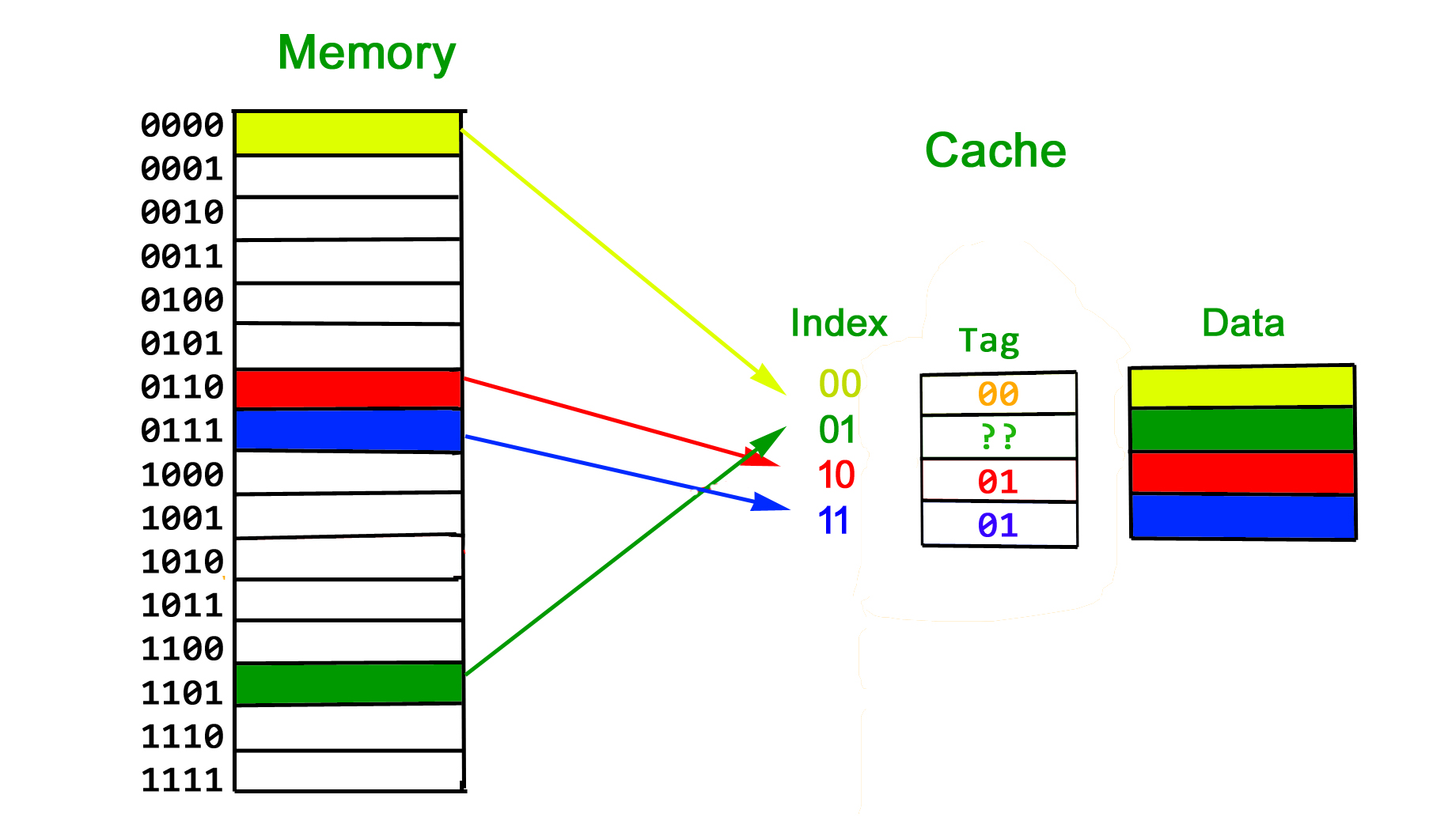

What is cache?#

pic

  • Index and tag
    • Assuming total memory has 16-entry of data, address is 4-bit. But cache has only 4-entry of data, its address (called index) is 2-bit. Then we need to save the other 2-bit as tag in the cache.

Computer architecture basics / cache#

Cache types#

  • Direct mapped cache
    • Fixed position given the address
  • Fully associated cache
    • Cache entry can go anywhere, need to compare every entries to find a match

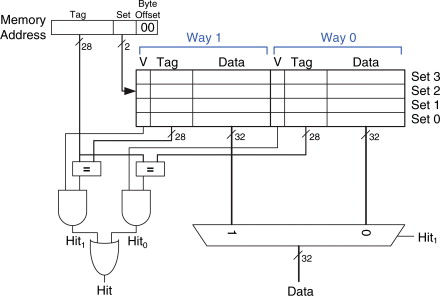

  • Way associated cache
    • Given address can go into different ways

pic

Computer architecture basics / cache#

Problems#

  • Cache coherence
    • Copies of data in the whole system
    • Read is OK, but write causes coherency problem
  • Self-modification code in Harvard architecture
    • Need a special instruction to invalidate instruction cache

RocketChip#

CPU complex generator from UCB#

The very first RISC-V CPU#

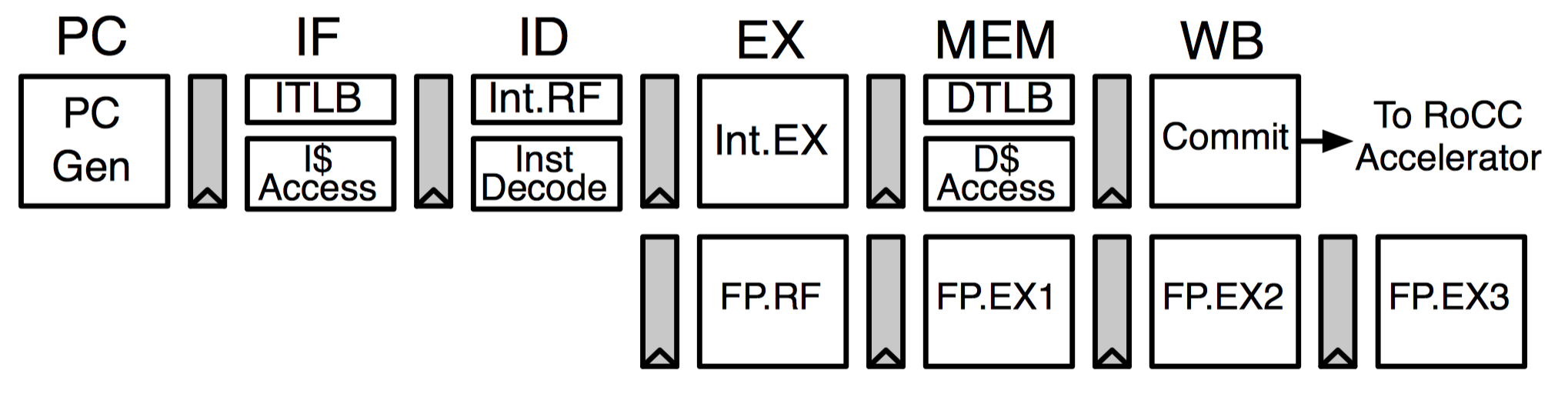

RocketChip / core#

Open source. Written in Chisel. Highly configurable!#

  • 5-stage pipeline
  • In-order single-issue
  • Branch prediction
    • BTB (branch target buffer)
    • BHT (branch history table)
    • RAS (return address stack)
  • MMU (memory management unit)
  • Non-blocking data cache
  • Floating-point unit

pic

Rocket Chip / generator#

Beyond a CPU core#

  • Network fabric + cache + IOs
  • Configuration + automatic generation

Based on Rocket Chip Generator, SiFive builds up its 3/5 series CPUs.#

The Rocket Chip Generator (techical report from UCB/EECS)

SiFive CoreDesigner#

@DEMO#

Snapshots from SiFive

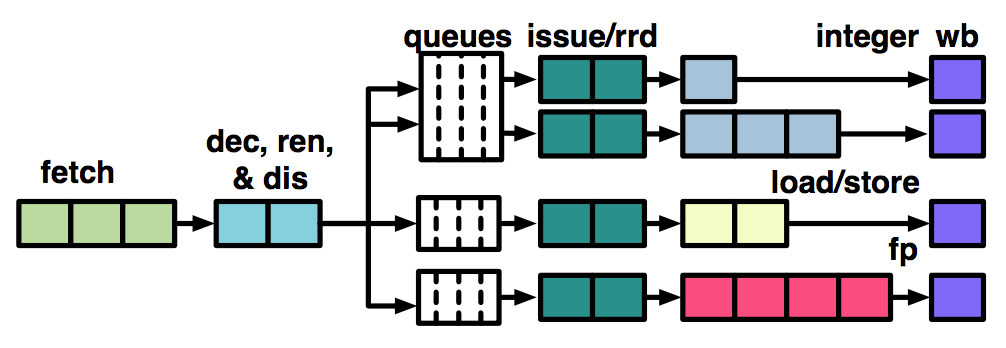

BOOM (Berkeley out-of-oder machine)#

pic

Based on Rochet Chip Generator#

  • From the same UCB department
  • Out-of-order
  • Superscalar: multi-issue and can be configured

BOOM / regfile challenges#

Multi-issue architecture’s bottleneck is the register file#

  • Number of ports blows up the size
    • 4-issue = 4-write + 8-read ports
  • Congestion in physical design

BOOM v2: an open-source out-of-order RISC-V core (techical report from UCB/EECS)

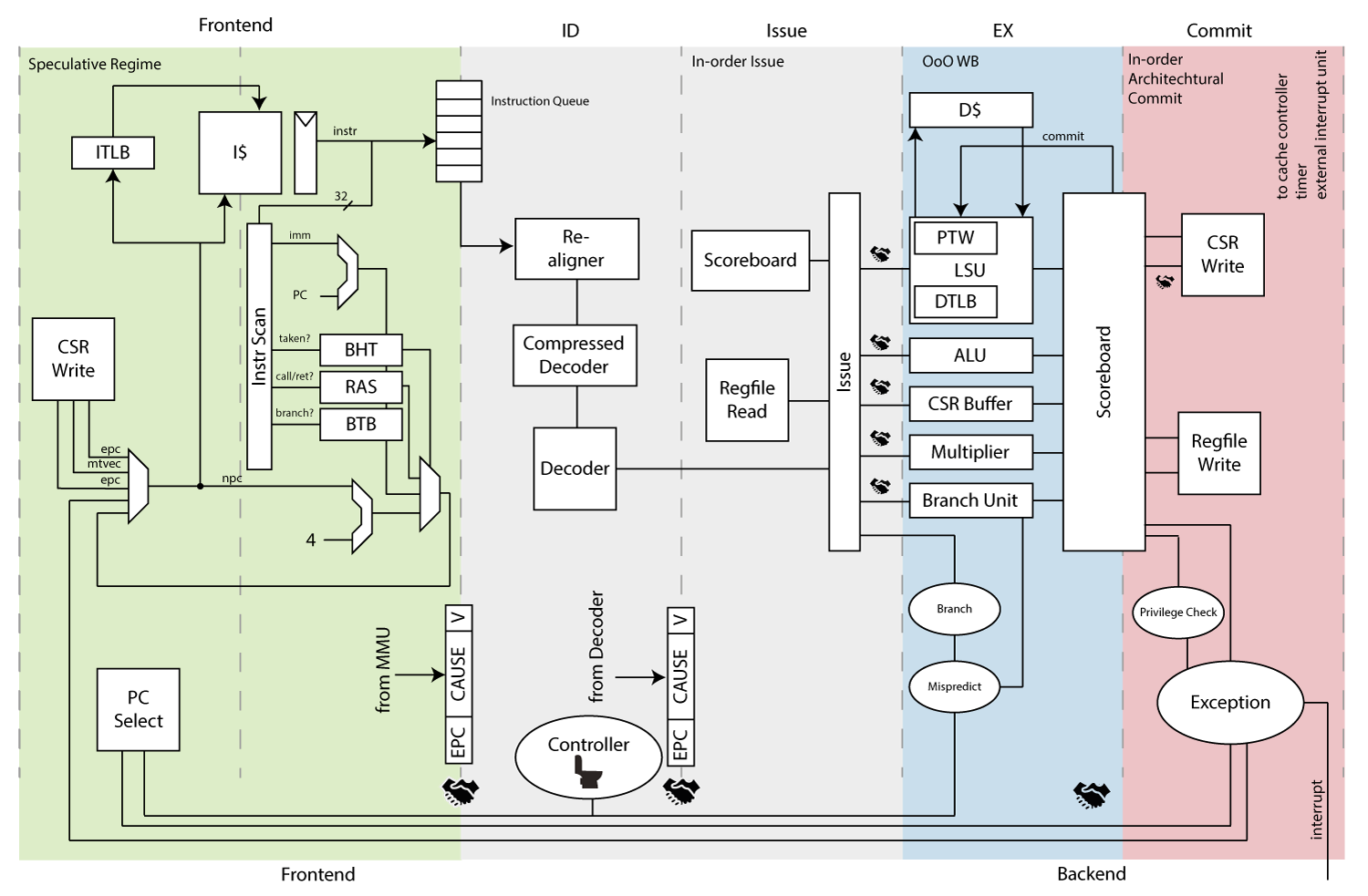

Ariane (PULP from ETH Zurich)#

pic

Ariane#

Fetch stage#

  • Branch prediction
    • BHT + RAS + BTB
  • FIFO to hold the info goes into I$
    • To decouple the delay of I$
  • FIFO to the next stage
    • To decouple front-end and back-end

Decode stage#

  • Includes RVC (compressed instruction) decoding

Issue stage#

  • Resolve branch
  • Keep scoreboard

Ariane#

Execution stage#

  • Store buffer
    • Speculative vs. commit
  • CSR buffer
    • For speculative operation

Commit stage#

  • Golden rule: no other pipeline stage is allowed to update the architecture state under any circumstances.

Computer architecture advanced topics#

Cache coherence#

Cache coherence#

Software vs. hardware#

  • Software managed coherency
    • What needs to be done?
      • Clean or flush dirty data, and invalidate old data
    • Challenges
      • Software complexity
        • Hard to debug multiple CPU system
          • Cache clearning and invalidation must be done at the right time, and coordinates between multiple masters
      • Performance and power
        • How to work out which data needs to be maintained?
        • And if it has more dirty data, software coherency takes longer to clearn and invalidate than hardware coherency

Cache coherence#

Hardware managed coherency#

  • Snooping
    • Every cache maintain its own cache state (shared or not)
    • When need to write to a shared cache, tell other caches
      • Snooping message
  • Directory
    • Centralized directory: cache state
    • All requests go through the directory
  • Modern design: a combined snooping and directory
    • Local snooping, global directory

Write options#

  • Write invalidate
  • Write update

Snoop filter#

  • A directory to hold local cache info, to filter out snoop message

Status of the cache block#

  • MSI (modified/shared/invalid)
  • MESI (add exclusive)

Summary#

CPU pipeline#

  • IF/ID/EX/MEM/WB
  • Data/control/structure hazards

Use parallelism to improve performance#

  • Multi-issue
  • VLIW/SIMD
  • OOO
  • SMT

Use cache to improve memory access latency and bandwidth#

RocketChip#

  • Text-book 5-stage pipeline
  • SiFive CoreDesigner

BOOMv2#

  • Berkeley out-of-order machine

Ariane#

  • Modern pipeline design
  • SystemVerilog

Cache coherency#

  • Software vs. hardware
  • Hardware: snooping vs. directory
