Introduction of RISC-V Open ISA

What is ISA?#

Contract between software and hardware.#

What is RISC?#

Reduced instruction set computer#

• Small set of simple/general instructions + load/store architecture
  • Optimize hardware to be simple and faster
  • Software-centric design: rely on compiler + software

• E.g. Alpha (DEC), SPARC (SUN), MIPS (now Wave), Power (IBM), ARM

What is RISC?#

• John Hennessy & David Patterson
  • Authers of computer architecture bible “Computer Architecture: A Quantitative Approach” (for graduates)
  • Also “Computer Organization and Design” (for undergraduates)
  • Turing Award 2017

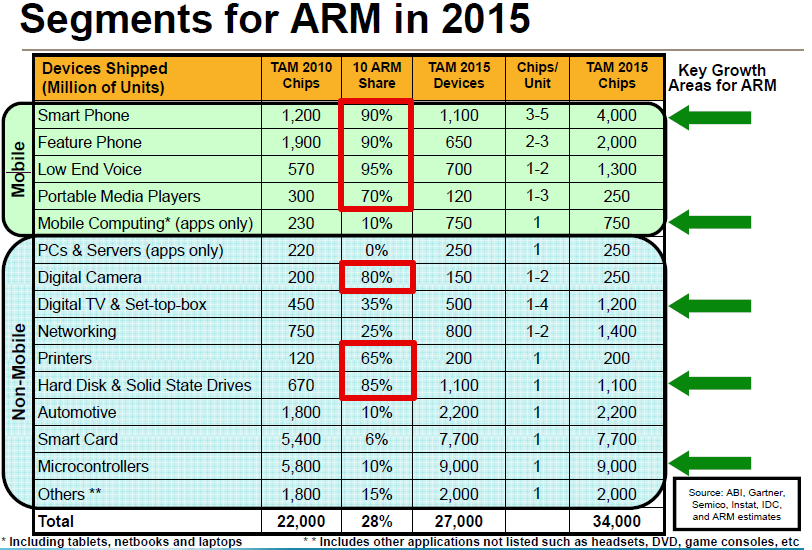

Most popular RISC ISA: ARM#

background-image: url(../image/money.jpg)

But also very expensive!#

ARM’s business model: IP licensing#

ARM’s IP eco-system: CPU-centric custom-SoC IP#

CPU (Application/Real-time/eMbedded), GPU, DSP, fabric, cache, ISP, debug, etc.

License fee + royalty#

Architecture license#

• Do you want to modify the RTL code?
  • Custom instruction; differentiation
• This license that allows you to implement your own ARM core. 10+ Millions?

RISC-V / open source#

Free and open !#

• No fee to use or modify
• Commercial usage
  • Don’t need to open your modification or implementation

Open source hardware#

RISC-V / fundation#

http://www.riscv.org#

RISC-V / fundation#

Full list of members

RISC-V / ISA#

What is defined and not defined in RISC-V ISA#

Defined#

• Instruction set(s)
• Architecture states
  • GPR (general purpose register) + PC
• CSR (control status register)
• ABI (application binary interface)
  • GPR convention
  • Function/system call convention
• Exception and interrupt
• Debug architecture

Not-defined#

• Micro-architecture related details
• Implementation dependent details
• Even micro-architecture and implementation related instructions
  • Maybe in the future?

History / UC Berkeley#

2010 at UC Berkeley BAR#

UC Berkeley Architecture Research in Berkeley EECS department

• Birth place of RISC (reduced instruction set computer)
• Start as a teaching project
• https://bar.eecs.berkeley.edu

Two persons: David Patterson & Krste Asanovic#

• David Patterson
  • Turing Award 2017
  • Contribution: RISC, RAID
  • Vice Chair of the Board of the RISC-V Foundation
• Krste Asanovic
  • Chairman of the Board of the RISC-V Foundation
  • IEEE Fellow & ACM Fellow

History#

One company: SiFive at 2015#

• Krste Asanovic (Prof. in UCB, Co-Founder & Chief Architect)
• Yunsup Lee (Former student in UCB BAR, Co-Founder & Chief Technology Officer)
• Andrew Waterman (Former student in UCB BAR, Co-Founder & Chief Engineer)

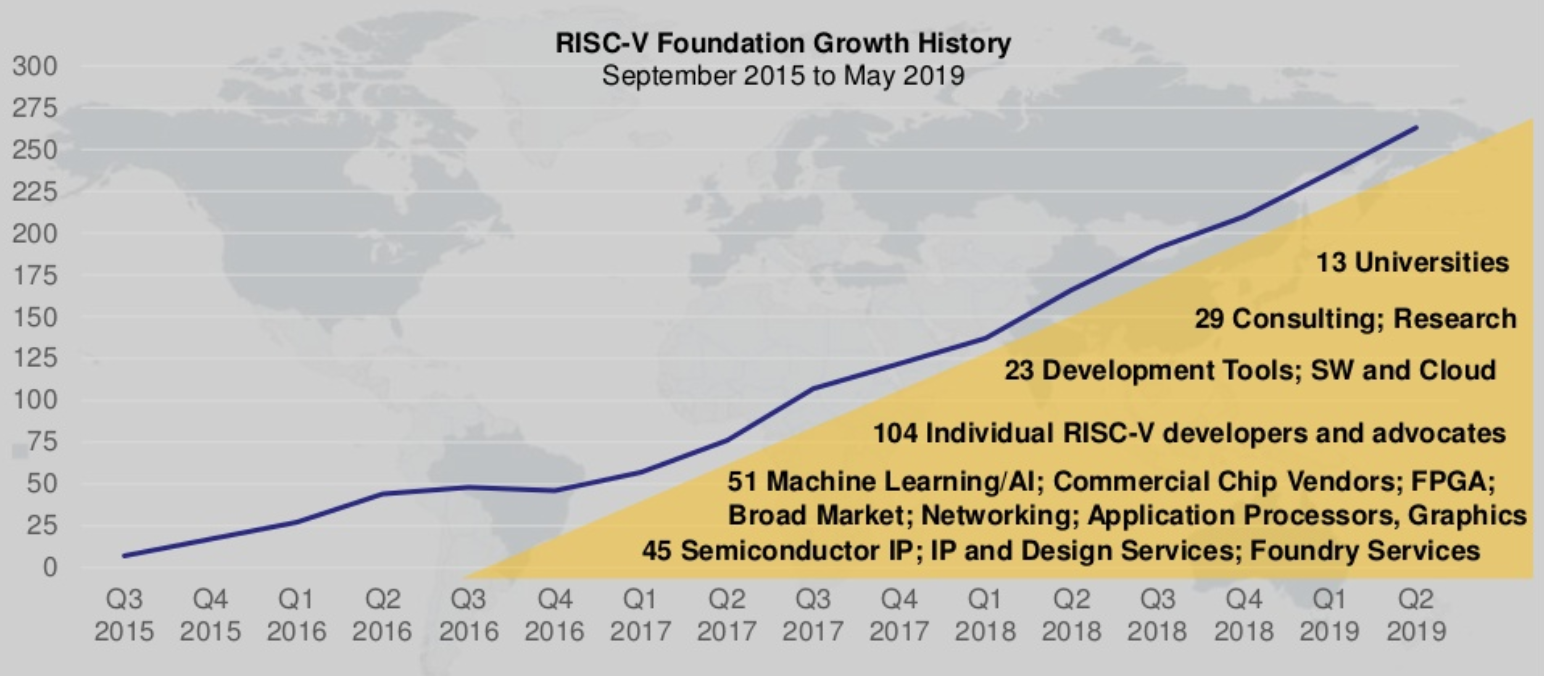

Nowadays / momentum worldwide#

Support from large companies#

Obviously, that’s the reason we are here.#

Ecosystem#

• Different from traditional architecture that’s owned/maintained by one company.
• It’s more like Linux, owned by a fundation, maintained by a community.

Commitee and Work groups#

• Technical committee
  • Base ISA
  • Different extensions: BJPV…
  • Fromal/debug/fast interrupt/memory model/…
• Program committee (workshops)
  • Chennai / Shanghai
• Marketing committee

Technical committee is open to everyone. Most of them have weekly meeting.

Ecosystem#

Workshop & summit#

Up-coming/recent events:

• RISC-V Summit
  • 2019/12/9 in San Jose, CA, US
• RISC-V China Roadshow
  • 2019/06/06-16 in Shenzhen, Chengdu, Shanghai, Hangzhou, Beijing
  • Alibaba, Andes, Codasip, GreenWaves, SiFive, etc…

Ecosystem / software#

Compiler#

• GNU toolchain (more developed)
  • GCC, GDB, OpenOCD
• LLVM (more promising)
  • Code optimization
  • Auto vecterization

OS#

• Linux: Fedora, Debian
• RTOS: FreeRTOS, Zephyr OS

Simulator#

• SPIKE: golden ISA simulator
  • Only for RISC-V
• QEMU: full-system simulator
  • Used for software stack development

Debugger#

• GDB + OpenOCD
• Lauterbach
• Segger
• UltraSoC

Ecosystem / hardware#

Open source hardware#

• RocketChip

  • The very first one from UCB
  • Not only a CPU but an SoC generator
  • Based on Chisel
  • Now maintained by CHIPS Alliance

• LowRISC

  • UK based company
  • Early adopter

• BOOMv2

  • Student project in UCB (out-of-order RISC-V)
  • Now maintained by Esperanto

• PULP (https://pulp-platform.org/)

  • From ETH Zurich University (Switzerland)
  • Also a family of cores and full SoC system
  • Based on SystemVerilog

• Swerv

  • WesternDigital in-house RISC-V CPU

Ecosystem / hardware#

Commercial#

• SiFive
  • A family of CPUs: 2/3/5/7 series
• Andes
  • A Taiwan CPU company
• Codasip
  • Start from Czech Republic
• Esperanto
  • High-performance cores for AI application
• UltraSoC
  • Debug solution provider

Ecosystem / hardware#

Others#

• Google
• Microsoft
• Rambus
• Facebook
• …

Ecosystem / CHIPS alliance#

A project hosted by “the Linux Foundation”#

Difference vs RISC-V Foundation#

• RISC-V is for ISA, not implementation
• CHIPS alliance hosts implementation around RISC-V

Note: all bay area companies

https://github.com/chipsalliance

Open source design#

• Chisel + FIRRTL
  • Agile design language and middleware
• FuseSoC
  • Package (library) manager for hardware design

Open source toolchain#

• Verilator
  • Translate SV RTL to C++, then compile and simulate
  • Open source choice besides VCS(S)/Questa(M)/Xcelium(C)
• Cocotb
  • Write testbench in Python
  • https://github.com/chipsalliance/tools-cocotb-verilator-build

Open source IPs#

• Rocket Chip
  • RISC-V CPU generator from Berkeley/SiFive; written in Chisel
• SweRV
  • RISC-V CPU from Western Digital; written in SV
• OmniXtend
  • Network based on TileLink; written in SV?

Ecosystem / OpenHW group#

Another RISC-V oriented open hardware group#

• Similar to CHIPS alliance

Open source RISC-V cores#

• PULP series CPU cores from ETH Zurich
  • Based on SystemVerilog

Comercial SoC based on PULP cores#

• GreenWaves: multi-core RISC-V SoC for IoT applications
• NXP: BLE controller on RISC-V

Commercial toolchain#

• Metrics: cloud-based simulator
• Imperas: ISS (instruction set simulator)
• OneSpin: formal verification

Ecosystem / RISC-V in China#

中国RISC-V产业联盟#

CRVIC (China RISC-V Industry Consortium)

• 上海市 + 企业
• Verisilicon

中国开放指令生态(RISC-V)联盟#

CRVA (China RISC-V Alliance)

• 中科院计算所
• 倪光南

Resources#

RISC-V Github (https://github.com/riscv)#

• Specification
• Toolchain
• Linux

Discussion groups on Google Groups#

• Hardware Developer
• Software Developer
• ISA Developer
• Debug

Summary#

Open ISA#

• Free to use/modify
• Open source (like Linux)
  • Owned by RISC-V foundation
  • Maintained by community
  • Tech committees

History & momentum#

• Start from UCB as a student project
• Now widely supported by lots of companies worldwide

Ecosystem#

• Software
  • Open source
• Hardware
  • Both open source and commercial
• RISC-V in China
