Privileged Architecture

Privileged architecture#

Purpose of privileged architecture#

• To manage and protect shared resources

  • Memory, IO devices, even cores

• Also needs to decouple implementation details

  • Handle unimplemented operations: software emulation
  • Handle async events (interrupts): IO, timer, software
  • Hypervisor support: 2-level address translation

Therefore, we have#

• 4 privilege modes: U, S, H, M
• PMP/PMA (physical memory protection/attributes)
• Virtual memory
• Interrupts and exceptions
• And a bunch of CSRs to serve these functionality

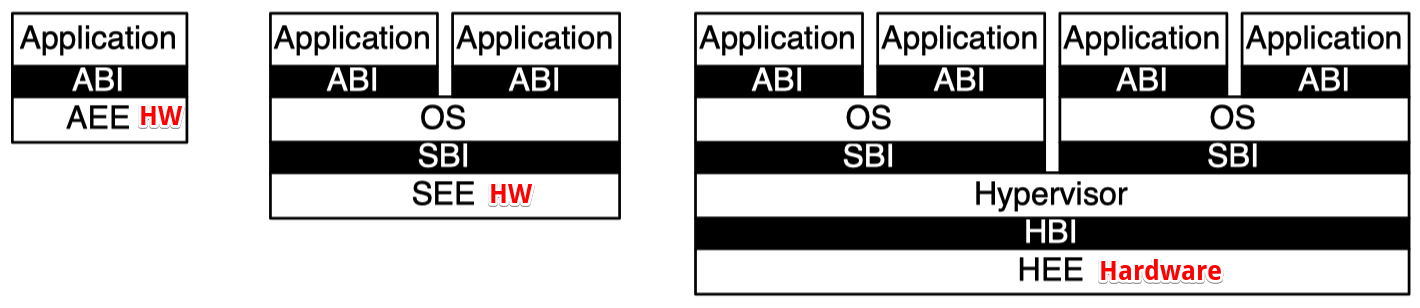

Privileged architecture / software stack layers#

4 different kinds of platforms#

Privileged architecture / software stack layers#

The interface is ECALL instruction#

Generates ECALL exception and traps into supporting execution enviroment

Privilege modes#

4 privilege modes (from low to high)#

• U: user mode for application
• S: supervisor mode for operating system
• H: hypervisor mode for virtualization
• M: machine mode

Debug (non-functional mode) is slightly higher than machine model, but need physical debugger connected and enabled.

• Each privileged mode has its own CSRs and instructions
  • CSRs can only be accessed by higher/equal levels of modes
  • Access permission violation will throw exception
• Mode specific instructions
  • ECALL: transition between software layer, and privilege modes
  • xRET: return to previous layer and mode
    • MRET, SRET
  • SFENCE.VMA: supervisor mode only. Clear TLB after change the page table in memory
  • WFI: machine mode only. Stall current hart until an interrupt, super useful for low power application

Privilege modes / M (machine)#

• The highest / only-mandatory privilege mode
• The level that has directly access hardware, right after reset

Machine mode CSRs#

• misa: because RISC-V is a family of ISAs, every implementation has its own supported ISA subsets. misa contains the ISA subsets current hart supports
• mstatus: an aggregation of operating states
  • Global interrupt enable, and interrupt stack. And others …
• And a bunch of CSRs for trap handling
  • mtvec, medeleg and mideleg, mip and mie, mtime and mtimecmp, mscratch and mtval, mepc and mcause
  • More details will be discussed in later section.

Note: Other privilege modes have similar CSRs, some of them are just a shadow of M-mode CSRs which are read-only in lower privilege modes.

Virtual memory#

What?#

• Abstraction of actual memory resource to create the illusion of owning a dedicated/large memory for each application/process.

Why?#

• Decouple: e.g. 2GiB physical memory shared by OS and hundreds of processes.
• Security: e.g. isolate memories from process to process

How?#

• Address translation by MMU (memory management unit)
  • Obviously cannot do 1-to-1 translation, too many entries
• Paged virtual memory
  • Divide virtual address space into pages, e.g. 4KiB
  • Still cannot do 1-to-1 translation, too many entries (4GiB/4KiB = 1Mi)

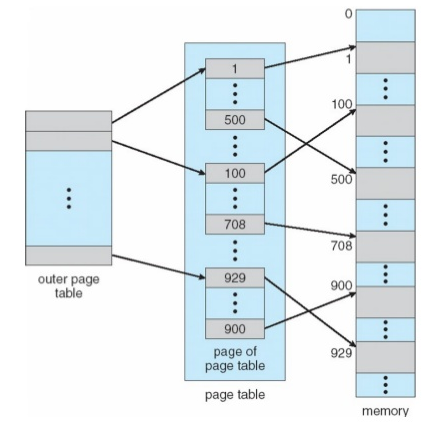

• Levels of page tables
  • Example of 3-level page tables

Virtual memory / RISC-V#

• Finest granularity of page size if 4KiB
  • Last level of page table
• PTE (page-table entry) contains
  • Physical address
  • Permission bits
  • Page status (accessed / dirty)
• Hardware PTW (page-table walker)
  • PTW is mechanism to go through the page tables to find target virtual address’s physical address
• Software TLB (translation lookaside buffer) refill
  • TLB is a cache of PTE close to pipeline for faster translation
    • Otherwise, every memory access becomes at least 4 memory accesses

• Support ASID (address space ID)
  • Reduce context switch cost when different processes running on the same hart
• Multi-level page tables
  • 2-level for SV32; 3-level for SV64
• Super-page: stop before reaching to the last level leaf
  • Much larger size of page size
  • Less missing rate in TLB

TLB flush instruction SFENCE.VMA#

• When page tables are updated in memory, need to flush current TLB entries for update
• But only affects local hart, so if to sync with other hards, IPI (inter-process interrupt) is needed

Virtual memory / address translation#

Look up TLB#

• TLB is just like cache. Its miss will trigger page table walker
  • Small system use full-associated design with less entries
  • Large system use way-associated design with more entries

Page table walker#

• Hardware PTW: simple FSM that reads memory
• Software PTW: more latency/power
• Page fault exception: page is in external storage, or not allocated

Software MMU#

• Allocate new page, or read in page from external storage
• Page replacement if physical memory is full (next slide)

Virtual memory / page replacement#

• Physical memory is not unlimited, when it’s full, old page needs to be swapped out to external storage
• In RISC-V page replacement is managed by software
  • When a page is used but its not currently in physical memory, raise “page fault exception” to involve software
  • Hardware support is the accessed and dirty bits in each PTE (page table entry)
  • Recently non-accessed pages will be freed
  • Dirty pages will be written out to external storage

Virtual memory / protection#

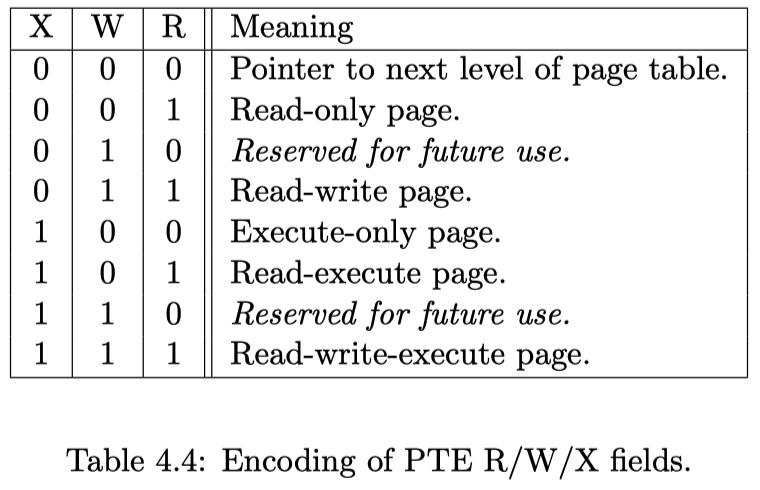

• Every PTE has 3 bits of permission field

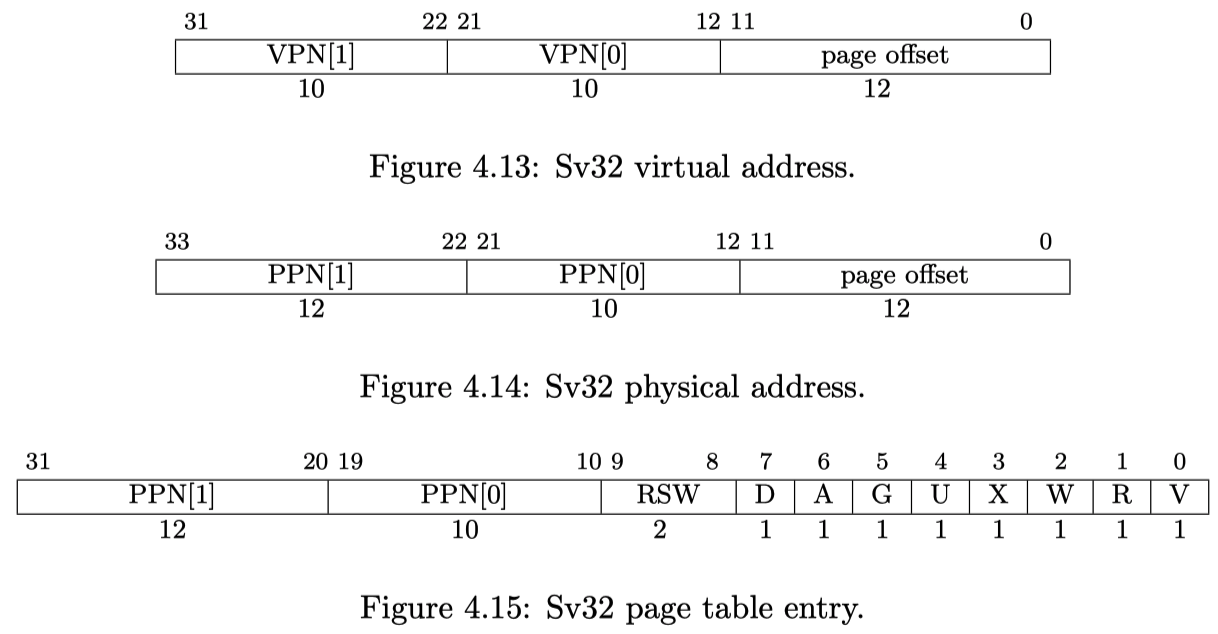

Virtual memory / SV32#

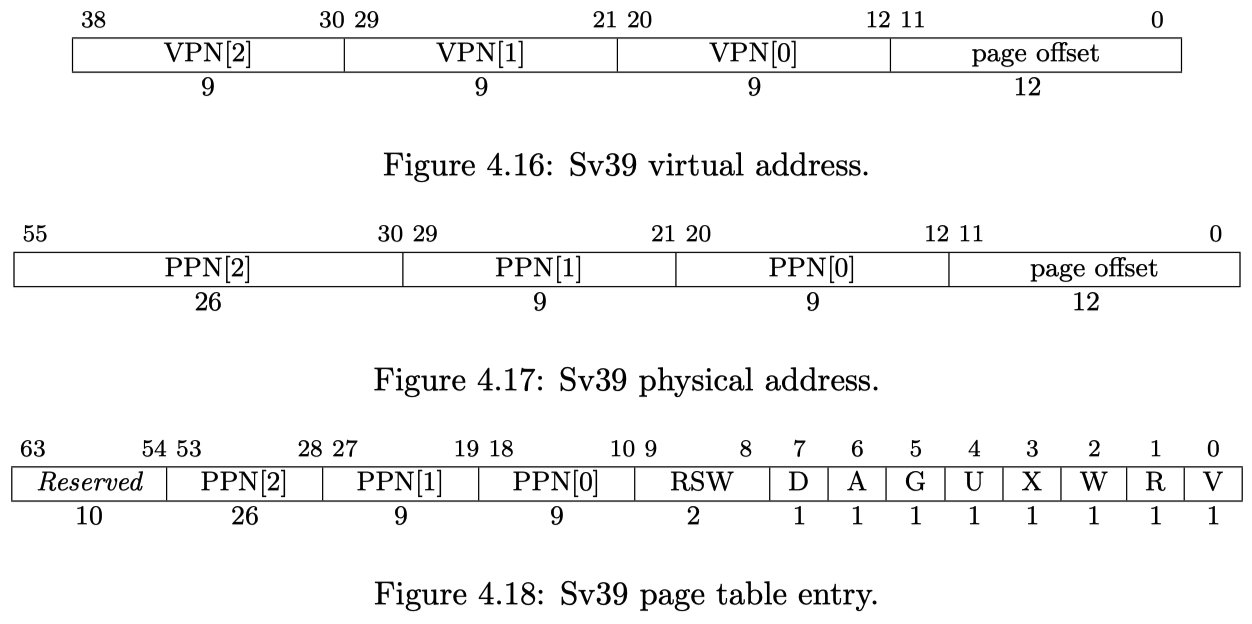

Virtual memory / SV39#

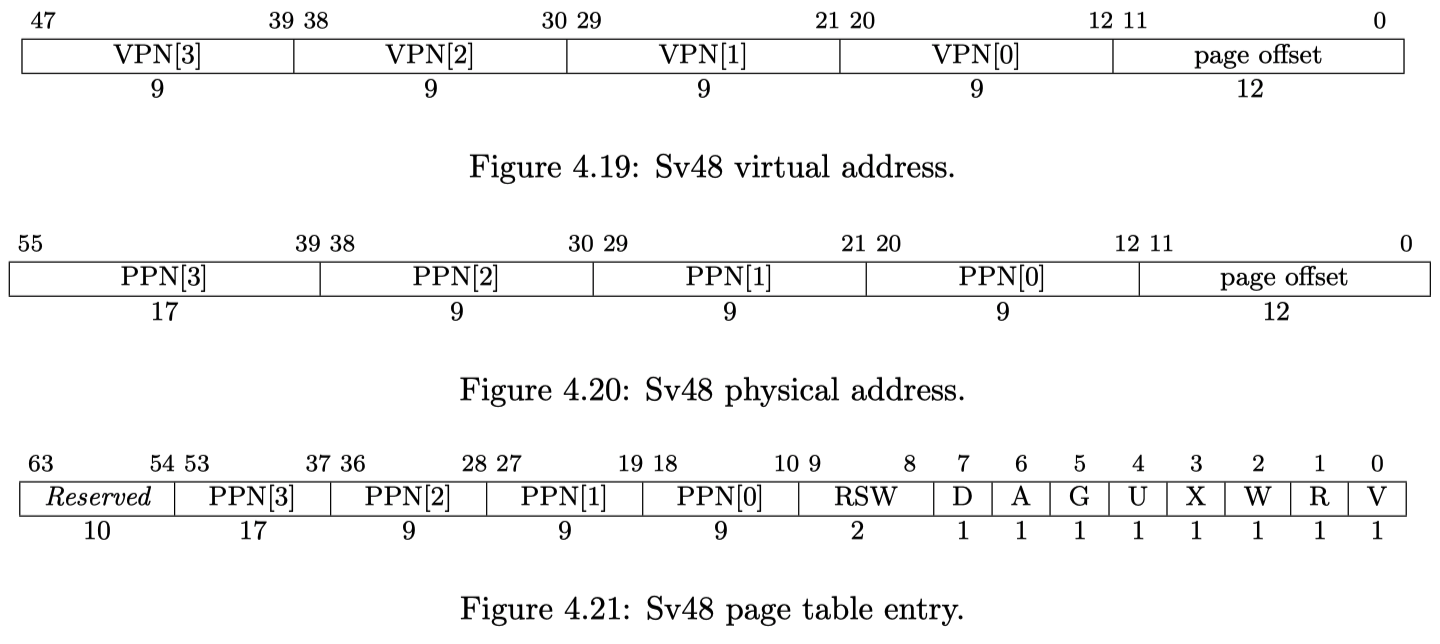

Virtual memory / SV48#

PMP (physical memory protection)#

Why?#

• If without full featured OS, virtual memory is not efficient.
• Embedded systems, with RTOS (real-time OS), still need memory protection to isolate user application from accessing kernel space

PMP: add R/W/X permissions to PMP regions#

• By default, S/U mode doesn’t have permission
• Num of regions is up to 16, aligned to 2^N
• Higher priority than virtual memory protection
  • PMP checks happen after VMP (virtual memory protection) checks
  • Useful for untrusted S-mode

PMA (physical memory attributes)#

Attributes of physical memory regions#

• Cacheable or non-cacheable
• Ordering allowed
• Atomic access allowed
• Mode allowed
• Access widths allowed
• Alignment restriction
• …

Attributes can be programmable

Note: RocketChip doesn’t support PMA

Interrupt and exception#

Difference?#

• Interrupt is async, exception is sync
  • Sync means tied to specific instruction execution

Interrupt types#

• Software
  • Initiator is another hart/processor
• Timer
  • For timely scheduled tasks
• External
  • Peripheral devices, e.g. DMA

Exception types#

• Instruction address misaligned
• Instruction access fault
• Illegal instruction
• Breakpoint
• Load address misaligned
• Load access fault
• Store/AMO address misaligned
• Store/AMO access fault
• Environment call from U/S/M-mode
• Instruction page fault
• Load page fault
• Store/AMO page fault

Interrupt and exceptions / exception#

Misalignment#

• Whether misaligned load/store will trigger exception depends on implemenation.
• Instruction misalignment

Enviroment call#

• ECALL triggers an exception to change privilege modes

Interrupt and exceptions / related CSRs#

Where to trap#

• xTVEC: entrance address of trap
  • 2 modes: direct (BASE) or vectored (trap to BASE+4xcause)

Mode to trap into#

• xI/EDELEG: trap deligation registers
  • By default, trap into machine mode, but use deligation registers, other modes can be delegated for certain types of trap

Reason to trap#

• xCAUSE: the cause of trap
• xTVAL: trap value written by hardware
  • Contain more information about the exception

How to return from trap#

• xEPC:PC before trap handler (in order to resume after trap handler)
• xSTATUS: it holds the previous privilege mode xPP and global previous interrupt enable xPIE

Interrupt enable#

• xSTATUS: global interrupt enable
• xIE: interrupt enable for each modes and types
• Exception cannot be disabled

Interrupt and exceptions / interrupt controller#

PLIC (platform level interrupt controller)#

• External interrupt aggregator

CLINT (core local interruptor)#

• Provide timer and software interrupt memory-mapped CSRs

Both PLIC and CLINT will be covered in later section

Summary#

Purpose of privileged arch#

• Manage resource
• Decouple implementation details

4 privilege modes#

• U, S, (H), M

Memory#

• Virtual memory
• PMP & PMA

Exception#

• Precise exceptions
• Cause mode changing

Interrupt#

• Non-precise interrupt
• 3 types: external, timer, software
• PLIC (platform-level interrupt controller)
