Understanding LLaMA2 Part 1 Model Architecture

#software #ai #llm #open-source

Here I’m capturing the details of llama’s model architecture use PlantUML component diagram, using the following 2 GitHub repos as references

• https://github.com/facebookresearch/llama/blob/main/llama/model.py
• https://github.com/karpathy/llama2.c/blob/master/model.py

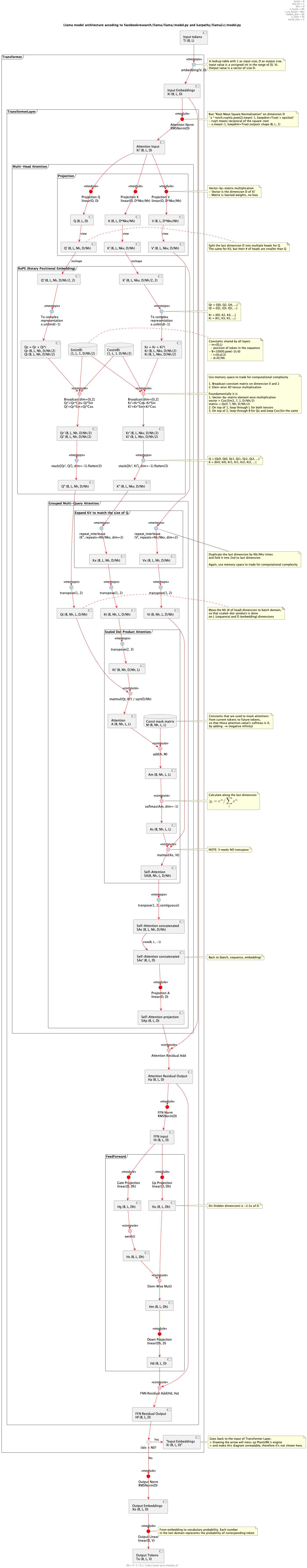

In the following diagram

• The “gray boxes” are tensors with their shapes in parentheses
• The “colored round dots” are operations with their categories include
  • “memops”: memory operations
  • “module”: PyTorch module operators
  • “compute”: non-PyTorch computational operators
• The “grouping boxes” are to make the architecture modularized close to the original source code
• The “yellow boxes” are my in-depth comments and understanding of different parts of the architecture

In order to make the diagram more readable, here I choose to use abbreviations of parameters and hyper-parameters, which are explained on the upper-right corner of the diagram.

NOTE: this architecture diagram doesn’t include KV cache support, which will be explained in the next part.

You can find the source of this diagram at https://github.com/jimwang99/understanding-llama2/blob/main/model.puml
